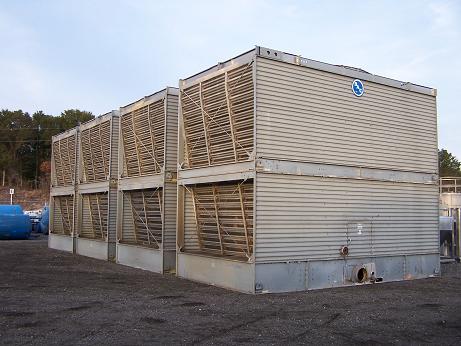

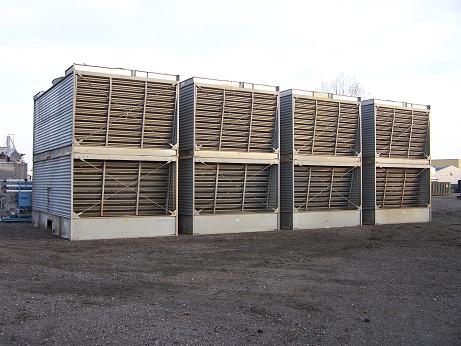

Used Baltimore Aircoil Company (BAC) 860 Nominal ton cooling tower. Model
SWIL2036-0004

Used Baltimore Aircoil Company (BAC) 860 Nominal ton cooling tower.  Model

Used Baltimore Aircoil Company (BAC) 860 Nominal ton cooling tower.  Model

Used Baltimore Aircoil Company (BAC) 860 Nominal ton cooling tower.  Model

Description:
Used Baltimore Aircoil Company (BAC) 860 Nominal ton cooling tower.  Model # 33860-4.  Certified capacity 2,515 GPM from 95 degrees F to 85 degrees F @  78 degrees wet bulb. Equpped with one-piece multi groove, neoprene/polyester powerband belt drive system with aluminum fan sheave.  Electric immersion heater packages with (2) 12KW 480/3/60 elements, and contractor.  Air intake screens.  Vibration cut-out switches.  12" ANSI bottom outlet suction connections.   Built with heavy gauge G235 hot-dip galvanized steel angles and channels.  Casing is constructed of fiberglass-reinforced polyester (FRP) panels.  Has 34" X 35" hinged access door on each side to access eliminators and fan plenum section.  Air inlet louvers are wave-formed, fiberglass reinforced polyester(FRP), spaced to minimize air resistance and prevent water splash-out.  Fan motor is 60HP, TEAO, 460-3-60 (1 speed/1 winding).  Overall dimensions:  18'-10 3/8" tall X 21'-6 1/2" long X 12' wide.  FOB: WIlmington, NC

Location:  Stock located in Wilmington, NC
