Description:

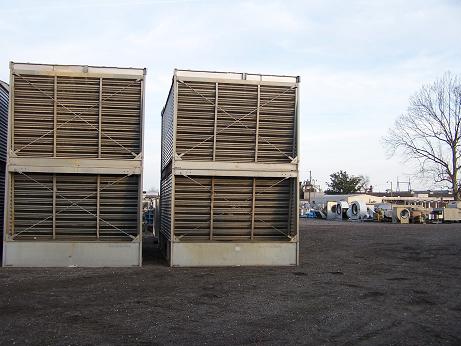

Used Baltimore Aircoil Company (BAC) 860 Nominal ton cooling tower. Model # 33860-4. Certified capacity 2,515 GPM from 95 degrees F to 85 degrees F @ 78 degrees wet bulb. Equipped with one-piece multi groove, neoprene/polyester powerband belt drive system with aluminum fan sheave. Electric immersion heater packages with (2) 12KW 480/3/60 elements, and contractor. Air intake screens. Vibration cut-out switches. 12" ANSI bottom outlet suction connections. Built with heavy gauge G235 hot-dip galvanized steel angles and channels. Casing is constructed of fiberglass-reinforced polyester (FRP) panels. Has 34" X 35" hinged access door on each side to access eliminators and fan plenum section. Air inlet louvers are wave-formed, fiberglass reinforced polyester(FRP), spaced to minimize air resistance and prevent water splash-out. Fan motor is 60HP, TEAO, 460-3-60 (1 speed/1 winding). Overall dimensions: 18'-10 3/8" tall X 21'-6 1/2" long X 12' wide. FOB: Wilmington, NC
Location:  Stock located in Wilmington, NC
