Used Alfa-Laval scraped surface 9 sq.ft. S/S horizontal heat exchanger(SOLD
SWIL2050-0030

Used Alfa-Laval scraped surface 9 sq.ft. S/S horizontal heat exchanger(SOLD

Used Alfa-Laval scraped surface 9 sq.ft. S/S horizontal heat exchanger(SOLD

Used Alfa-Laval scraped surface 9 sq.ft. S/S horizontal heat exchanger(SOLD

Description:

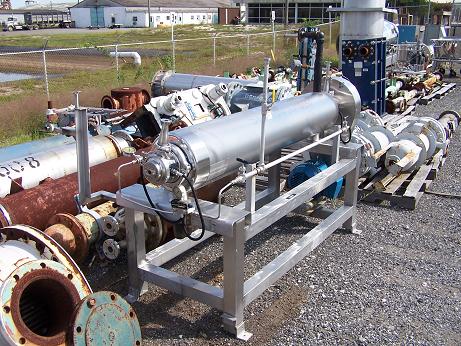

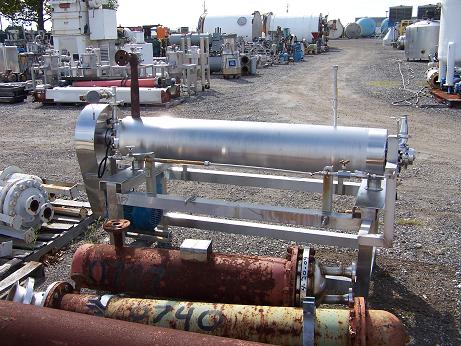

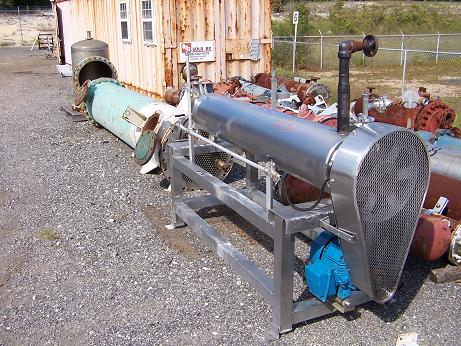

Used Alfa-Laval scraped surface 9 sq.ft. stainless steel horizontal heat exchanger. Product side rated 300 PSIG @ 300 degrees F.  Media side rated 250 PSIG @ 300 degrees F. 1" Product inlet and outlet, 2" steam inlet and outlet.  Equipped with (14) alfa-lon blades.  Unit is wrapped in foamglass insulation with stainless steel sheathing.  Belt driven by 7.5 HP motor 3/60/230-460 volt, 1800 RPM.  Mounted on adjustable legs. Built 2002.  S/N HC77505CC  FOB: Wilmington, NC

Location:  Stock located in Wilmington, NC

Add to Equipment Request

Contact D. H. Griffin Used Equipment for all your used process equipment needs! Call Jason Fornes
at (252) 378-4154 or request information from our website 24/7.
